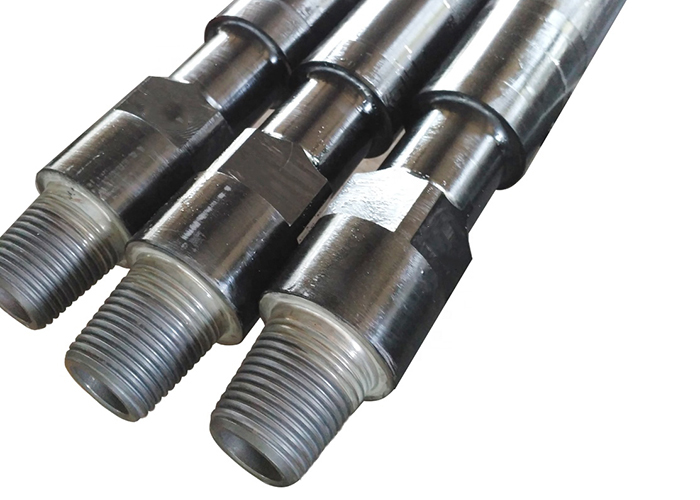

API Thread Ingersoll Rand Drill Pipe Grade G105 Steel 114mm 6096mm

Langfang Baiwei Drill Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

API Thread Ingersoll Rand Drill Pipe Grade G105 Steel 114mm 6096mm

  • 1
  • 2

Brand Name : BaiWei

Model Number : 4.5"

Certification : ISO9001

Place of Origin : Hebei China

MOQ : 20pcs

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500 Pcs per month

Delivery Time : 20-30 working days, which will be adjusted according to different products and inventory

Packaging Details : According to customer needs

Origin : Hebei china

Type : Drill Pipe

Processing type : Forging

Applicable industries : Energy & Mining, Deepwater Drilling

Advantage : Reliable Material And Long Service Life

standard : API, API 5CT

Section shape : round/square

Material : alloy steel

Contact Now

API Thread Ingersoll Rand Drill Pipe Grade G105 Steel 114mm 6096mm




Description

A casing is a large diameter pipe used as a structural retainer for the walls of an oil and gas well or wellbore. It is inserted into the wellbore and held in place to protect the subterranean formation and wellbore from collapse and to allow drilling fluid circulation and extraction to occur





Processing type Forging
Machine type Drilling Equipment
Type Drill Pipe
Advantage Reliable Material And Long Service Life
OD A 4 1/2"
Wall B 0.337"
Length L 25'
Weight 1bs 415
Dist From ShoulderC 3"
Across Flat E 3 1/2"
Recess DIA F 3 1/2"
Recess Location H 3 1/2"
Recess Length K 5"
Across Hex M 3 3/8"
Connection 4"
P/M 3 1/2 Reg



Features
1. High hardness and wear-resistant composite alloy steel provided by top national special steel manufacturers
2. The pipe joint is made of upsetting forging, the hardness is increased, and the wear resistance is better.
3. Couplings and pipes are friction welded, and heat treated end pieces for optimum durability.
4. Pipe chemistry with our quenching and tempering heat treatment



API Thread Ingersoll Rand Drill Pipe Grade G105 Steel 114mm 6096mm



Drill pipe usage notes

1. New drill pipe should be pasted thread oil before connection

2. Make up and break at least 3 times before drilling

3. Hard bending and plastic coating can be processed according to costumer special requirement.





FAQ

Q: What is your delivery time?
A: It usually takes 20 days to produce. Within 3 days (if there is stock).

Q: How to control the quality?
A: Before shipping, we should check and test each drill rod.

Q: Do you agree to order samples?
A: Yes, we welcome your sample order to test our quality.

Q: Has your drill pipe been heat treated?
A: Yes, our heat treatment of drill pipe and casing.

Q: Does your drill pipe have anti-rust function?
A: Yes, each drill pipe and casing will be anti-rust with paint or anti-corrosion oil before transportation. If you need galvanized pipe, please contact us.
